Welcome to NANTONG BAIWEI ELECTRIC CO., LTD
LANGUAGE: 中文版 ∷? 英文版
  • Enameled copper (aluminum) flat wire

Enameled copper (aluminum) flat wire

  • MODEL:Enamel copper (aluminum) flat wire
  • BRAND:BAIWEI Electric
  • THE PLACE OF ORIGIN:Hai'an, Jiangsu
  • MANUFACTURER:Nantong BAIWEI Electric CO., LTD
  •        Scan QR code
  • Product Introduction:

    Enameled flat wire is a winding wire made of oxygen-free copper rod or electrician's round aluminum rod after being drawn or extruded by a standard mold. The drawn bare wire is softened by annealing and then painted and baked for many times. Mainly used in windings of transformers, reactors and other electrical equipment.

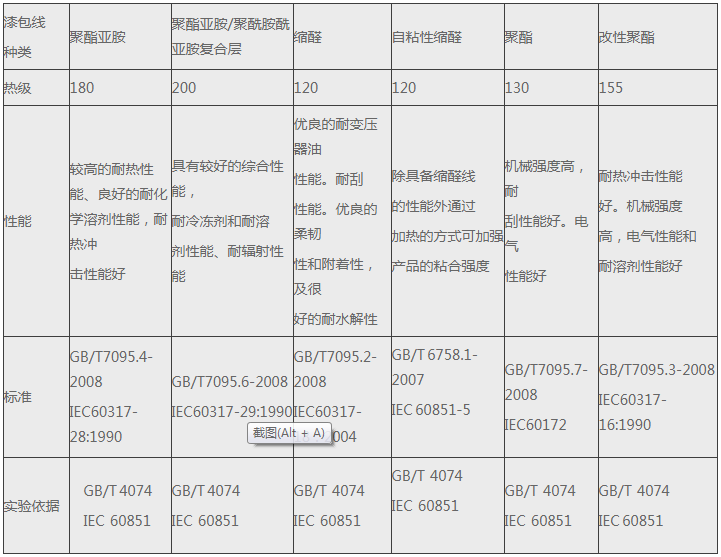

    Product category:

    130 polyester enamelled copper (aluminum) flat wire;

    155 modified polyester enameled copper (aluminum) flat wire;

    180 polyester imine enameled copper (aluminum) flat wire;

    200 polyester imide/polyamide-imide composite enameled copper (aluminum) flat wire;

    Class 120 acetal enamelled copper (aluminum) flat wire.



    Production scope:

    Wire thickness size -- A: 0.80 ~ 5.60 mm;

    Conductor width size -- B: 2.00 ~ 16.00mm;

    Width ratio of conductor: 1.4:1

    If you choose specifications above range, please contact us.



    Conductor material:

    Enamelled flat wire with soft copper flat wire in accordance with the provisions of GB55842-2009, 20℃ resistivity ≤0.017241 ω ·mm2/m, according to different mechanical strength requirements.

    Soft aluminum flat wire for enamelled flat wire is in accordance with the provisions of GB/T 55843-2009. 20℃ resistivity ≤0.02801 ω ·mm2/m, according to different insulation requirements, can use thin film 0.06 ~ 0.11mm or thick film 0.12-0.17mm.

    The thickness of self-adhesive layer of hot-bonded enamelled flat wire is generally 0.03 ~ 0.06mm. Our company adopts dielectric loss meter to monitor.

    For film thickness requirements, please contact us.


    According to different mechanical strength requirements, the prescribed non-proportional extension strength Rp0.2 standard range for semi-hard copper conductors is as follows:

    C1rp0.2 (>100 ~ 180)N/mm2, c2RP0.2 (> 180 ~ 220)N/mm2, c3RP0.2 (> 220 ~ 260)N/mm2.

    Can be customized according to customer technical requirements processing.
